frogRoomSense
frogRoomSense

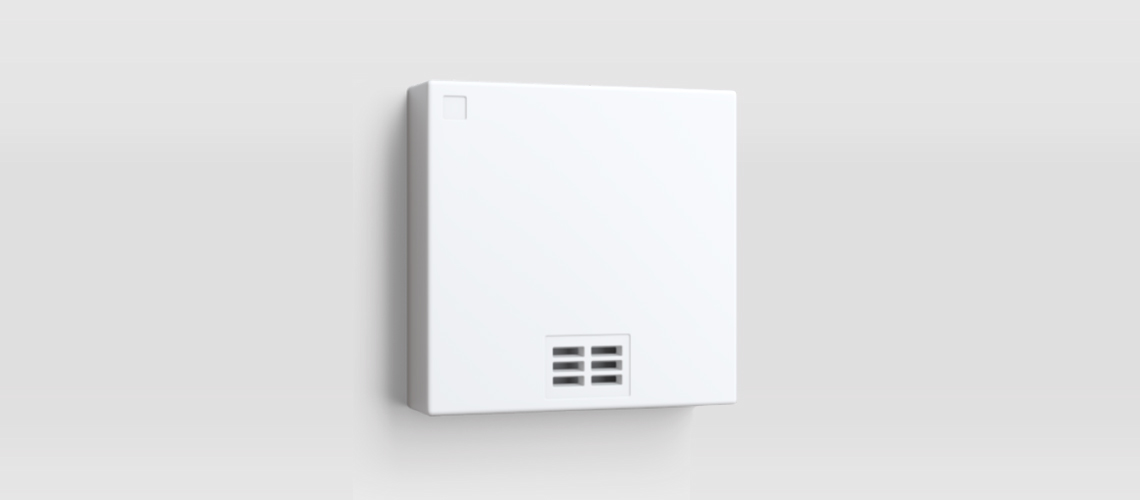

Multifunctional sensor with sensors for temperature, humidity and brightness.
Multifunctional sensor for measuring temperature, humidity and brightness. All measured values are available to the complete frogblue system and can control e.g. heating, lighting, shading or alarm. No power and no plug, simply stick or screw on. With long battery life.
Battery
Network
Operation and Storage
Functions and Power
Dimensions and Weight
Packaging
- Type : CR2450R 3V lithium battery
- Quantity : 1
- Battery replaceable : Yes
- Service Life : Up to 3 years (temperature repetition rate "normal")
- WLAN : No
- Bluetooth® : Bluetooth® 4.2 Low Energy
- Frequency range: 2400-2483,5 MHz max. 3,4 dBm
- Typical radio open field range : 30 metres
- Ambient temperature : -20°C to +55°C
- Storage temperature : -25°C to +60°C
- Air humidity (during operation) : (Non-condensing)
- IP protection class : IP20
- Inputs : -
- Outputs : -
- Integrated Logic module : Yes
- Configuration backup : Yes
- Acceleration sensor : -
- Air pressure sensor : -
- Air humidity sensor : Measuring range from 0 - 100% relative humidity, non-condensing
- Temperature sensor : Measuring range from -20°C to 50°C
- Brightness sensor : Measuring range from 0.01 lux to 100 k lux
- Dimensions (L x B x H) : 46 x 46 x 13 mm
- Weight : 37 g
- Packaging dimensions (L x B x H) 1 unit : 75 x 75 x 30 mm
- Weight including packaging 1 unit : 50 g
