frogAccess1-1

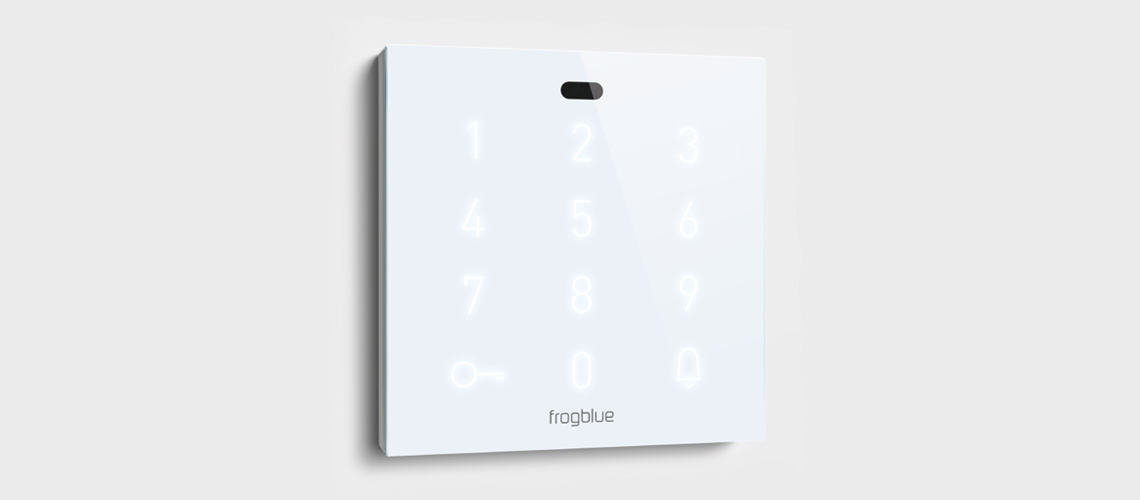

  • frogblue Access Control Keypad frogAccess1-1 : Product Image

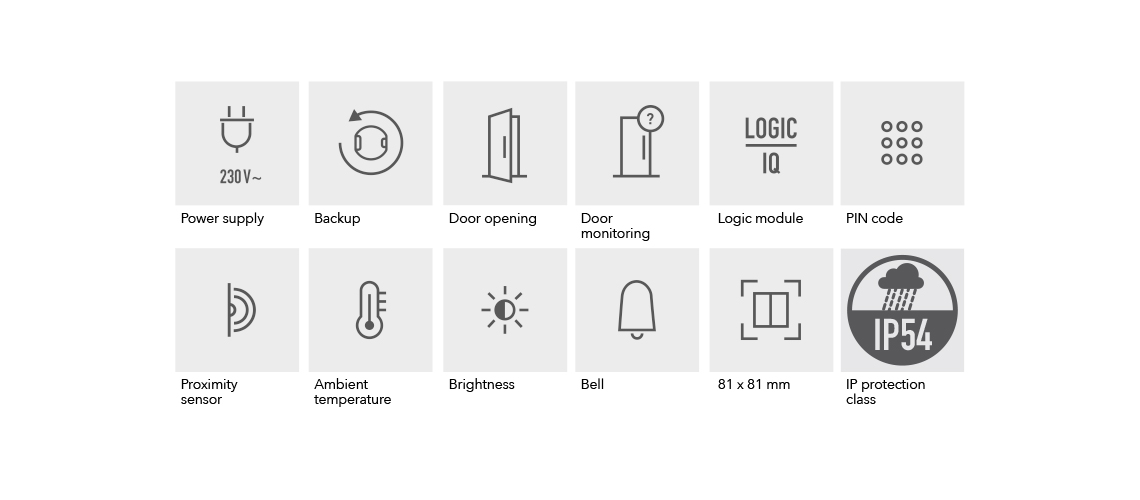

  • frogblue Access Control Keypad frogAccess1-1 : Product Feature

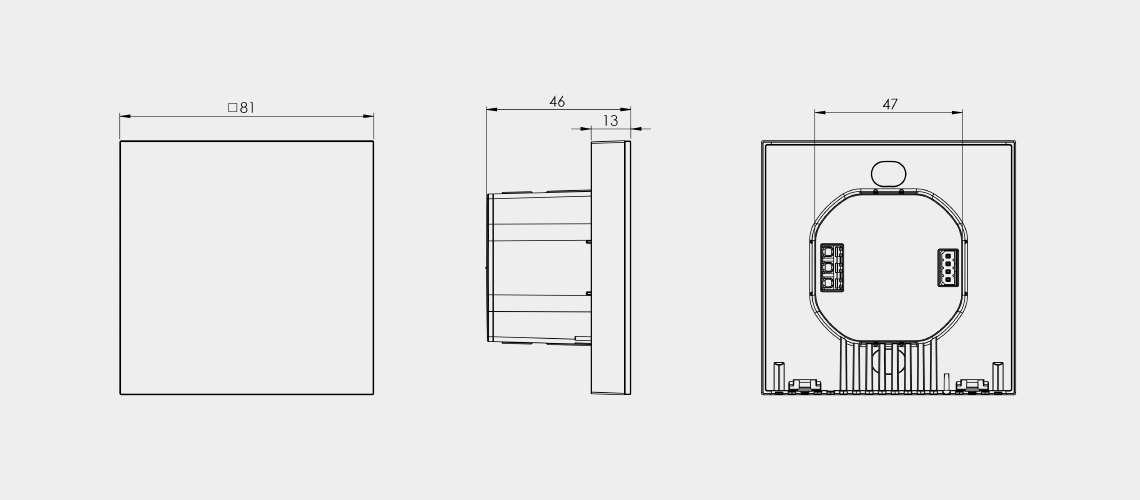

  • frogblue Access Control Keypad frogAccess1-1 : Product Dimensions

frogAccess1-1

12-key glass-touch user interface with translucent capacitive keys

Access control and building control via PIN code with glass touch input. With integrated proximity sensor, brightness sensor, temperature sensor, time buffer. With one input for connecting potential-free contacts and one switching output (230 V~).

Access control with PIN entry by means of capacitive, backlit 10-button keypad. Built-in ringer function. Multifunctional sensor features: Proximity, ambient temperature and brightness sensors for controlling the frogblue system e.g. light control or alarm triggering.

Power
  • Mains voltage : AC 110–240 V~
  • Mains frequency : 50 / 60 Hz
  • Typical power consumption : 1 Watt
Network
  • WLAN : No
  • Bluetooth® : Bluetooth® 4.2 Low Energy
  • Frequency range: 2400-2483,5 MHz max. 2,5 dBm
  • Typical radio open field range : 30 metres
Operation and Storage
  • Ambient temperature : -25°C to +55°C
  • Storage temperature : -25°C to +70°C
  • Air humidity (during operation) : (Non-condensing)
  • IP protection class : IP54
  • Contact type : closing contact
  • Connection variants : potential-free switches/buttons, lamps, inductive load,electronic transformers
  • Connection type : Spring-type terminal (single wire)
  • Wire cross section : 1 - 1,5 mm2 (rigid, flexible without ferrule) / 0,2 - 0,5 mm2 (rigid)
  • Max. cable length of the inputs ø 0,5 mm2 : 100 m
  • Stripping length : 8 mm (1-1,5 mm2 / 6 mm (0,2-0,5 mm2))
Functions
  • Inputs : 2; for connecting potential-free contacts (switches, buttons, relays)
  • Outputs : 1
  • Switching capacity : 1200 W / 1200 VA (220-240 V~) 600 W / 600 VA (110-219 V~)
  • Microphone : No
  • Loudspeaker : No
  • Sound encoder : Yes
  • Door opening button : Yes
  • Bell buttons : Yes
  • Numeric keypad 0-9 : Capacitive illuminated keys
  • Proximity sensor : Yes, maximum range 1 meter
  • Room temperature sensor : Yes
  • Brightness sensor : Yes
  • Door opening function : Yes
  • Integrated Logic module : Yes
  • Configuration backup : Yes
  • Comfort - timer functions : Yes
Dimensions and Weight
  • Dimensions (L x B x H) : 81 x 81 x 12 mm
  • Overall Height : 45 mmm
  • Weight : 100 g
Packaging
  • Packaging dimensions (L x B x H) 1 unit : 140 x 130 x 60 mm
  • Weight including packaging 1 unit : 200 g
