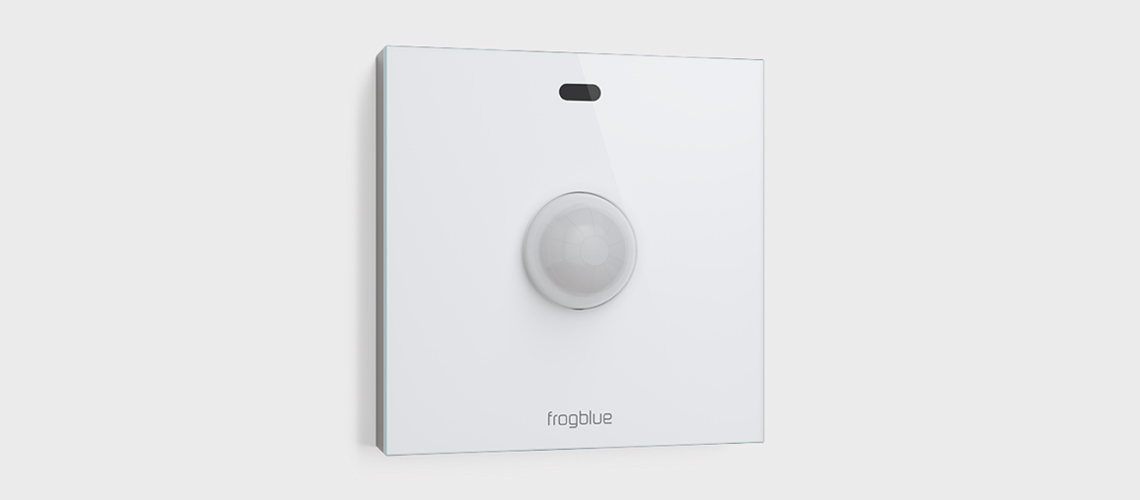

Motion sensor (PIR) with multifunctional sensors
PIR sensor for motion detection in the room by means of passive IR sensor technology. With temperature, brightness and proximity sensor.
Motion sensor (PIR) with multifunctional sensor features: Sensors for movement, room temperature and brightness for triggering alarms and controlling the lights and heating.
Power
Network
Operation and Storage
Functions
Dimensions and Weight
Packaging
- Mains voltage : AC 110–240 V~
- Mains frequency : 50 / 60 Hz
- Typical power consumption : 1 Watt
- WLAN : No
- Bluetooth® : Bluetooth® 4.2 Low Energy
- Frequency range: 2400-2483,5 MHz max. 0,1 dBm
- Typical radio open field range : 30 metres
- Ambient temperature : -25°C to +55°C
- Storage temperature : -25°C to +70°C
- Air humidity (during operation) : (Non-condensing)
- Contact type : closing contact
- Connection variants : potential-free switches/buttons, lamps, inductive load,electronic transformers
- Connection type : Spring-type terminal (single wire)
- Wire cross section : 1 - 1,5 mm2 (rigid, flexible without ferrule) / 0,2 - 0,5 mm2 (rigid)
- Max. cable length of the inputs ø 0,5 mm2 : 100 m
- Stripping length : 8 mm (1-1,5 mm2 / 6 mm (0,2-0,5 mm2))
- Inputs : 1; for connecting potential-free contacts (switches, buttons, relays)
- Outputs : 1
- Switching capacity : 1200 W / 1200 VA (220-240 V~) 600 W / 600 VA (110-219 V~)
- Microphone : Yes
- Loudspeaker : No
- Sound encoder : No
- Proximity sensor : Yes, maximum range 1 meter
- Room temperature sensor : Yes
- Brightness sensor : Yes
- Integrated Logic module : Yes
- Configuration backup : Yes
- Comfort - timer functions : Yes

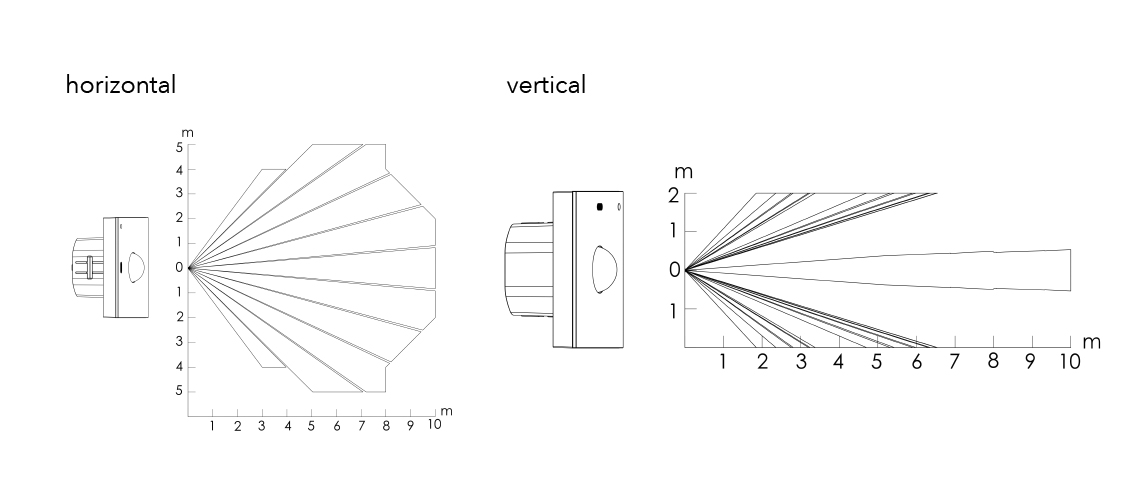

- Passive infrared sensor (PIR sensor) : Yes

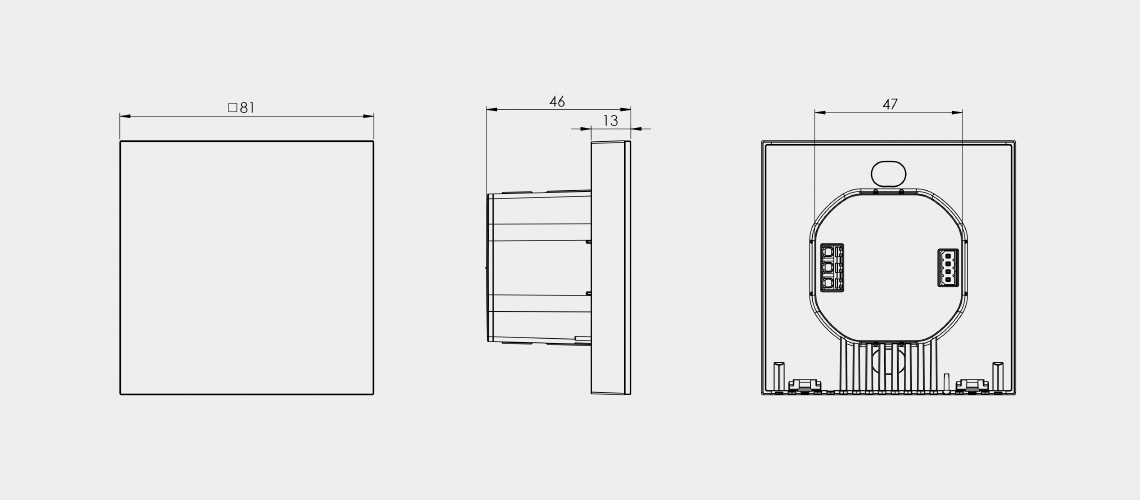

- Dimensions (L x B x H) : 81 x 81 x 12 mm
- Overall Height : 45 mmm
- Weight : 100 g
- Packaging dimensions (L x B x H) 1 unit : 140 x 130 x 60 mm
- Weight including packaging 1 unit : 200 g
