frogMultiSense
frogMultiSense

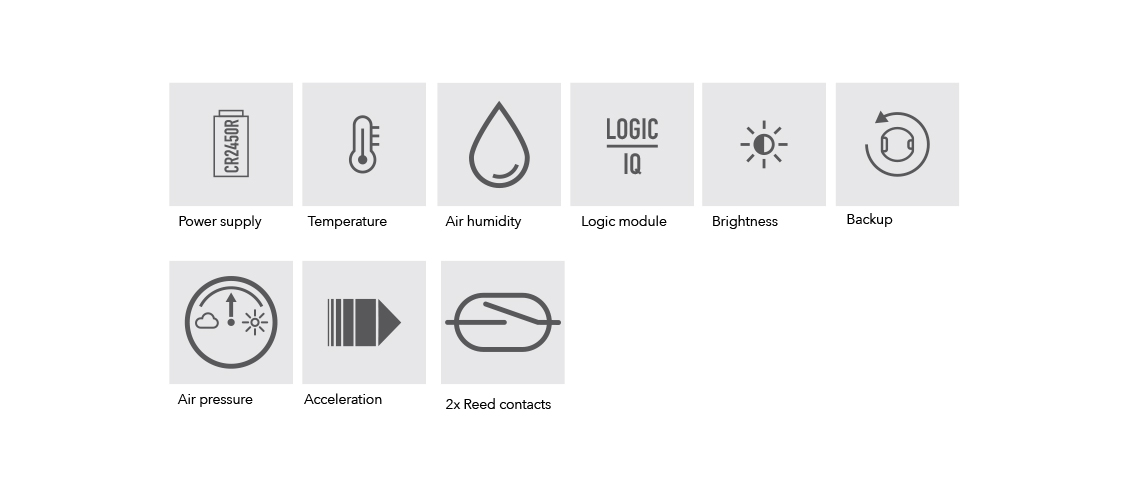

Multifunctional sensor with sensors for temperature, humidity, air pressure and brightness. Window opening or door opening detection using magnetic contacts and acceleration sensor (gyro sensor).
Multifunctional sensor for measuring temperature, humidity, air pressure and brightness. The status of windows and doors can be signalled by means of magnetic contacts. Vibrations are recorded via the acceleration sensor. All measured values are available to the complete frogblue system and can control e.g. heating, lighting, shading or alarm.
No power supply and no plug, simply stick or screw on. With long battery life. Due to its 10 year battery operation time, it can be fitted exactly where it is needed, where the heating needs to be regulated. Vibrations can also be detected ed e.g. in the event of impact to the window frame or the window glass.
- Type : CR2450R 3V lithium battery
- Quantity : 1
- Battery replaceable : Yes
- Service Life : Up to 2 years (temperature repetition rate "normal")
- WLAN : No
- Bluetooth® : Bluetooth® 4.2 Low Energy
- Frequency range: 2400-2483,5 MHz max. 3,4 dBm
- Typical radio open field range : 30 metres
- Ambient temperature : -20°C to +55°C
- Storage temperature : -25°C to +60°C
- Air humidity (during operation) : (Non-condensing)
- IP protection class : IP20
- Inputs : 2 Reed contact (left and right)
- Outputs : -
- Integrated Logic module : Yes
- Configuration backup : Yes
- Acceleration sensor : -
- Air pressure sensor : Measuring range from 260 to 1260 mbar
- Air humidity sensor : Measuring range from 0 - 100% relative humidity, non-condensing
- Temperature sensor : Measuring range from -20°C to 50°C
- Brightness sensor : Measuring range from 0.01 lux to 100 k lux

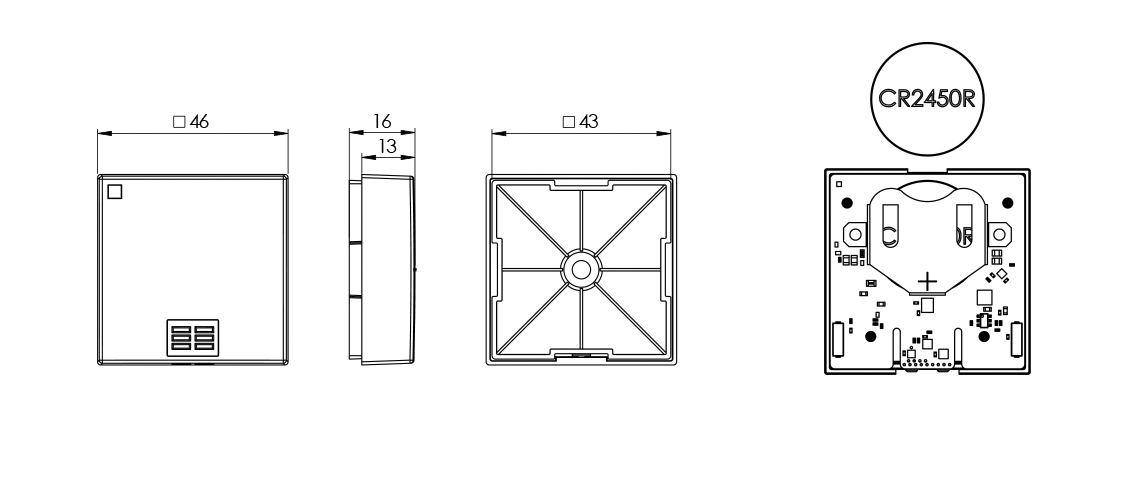

- Dimensions (L x B x H) : 46 x 46 x 13 mm
- Weight : 41 g
- Packaging dimensions (L x B x H) 1 unit : 75 x 75 x 30 mm
- Weight including packaging 1 unit : 50 g
