frogControl1-1

12-key glass-touch user interface with translucent capacitive keys

Freely configurable 12-key glass-touch user interface with translucent capacitive keys. With integrated proximity sensor, brightness sensor, temperature sensor and time buffer. With one input for connecting potential-free contacts and one switching output (230 V~).

It communicates directly with the frogs or other components of the system via the frogblue Bluetooth® mesh network.

Power

Mains voltage : AC 110–240 V~
Mains frequency : 50 / 60 Hz
Typical power consumption : 1 Watt

Network

WLAN : No
Bluetooth® : Bluetooth® 4.2 Low Energy
Frequency range: 2400-2483,5 MHz max. 2,5 dBm
Typical radio open field range : 30 metres

Operation and Storage

Ambient temperature : -25°C to +55°C
Storage temperature : -25°C to +70°C
Air humidity (during operation) : (Non-condensing)
IP protection class : IP54

Power connection

Contact type : closing contact
Connection variants : potential-free switches/buttons, lamps, inductive load,electronic transformers
Connection type : Spring-type terminal (single wire)
Wire cross section : 1 - 1,5 mm2 (rigid, flexible without ferrule) / 0,2 - 0,5 mm2 (rigid)
Max. cable length of the inputs ø 0,5 mm2 : 100 m
Stripping length : 8 mm

Functions

Inputs : 2; for connecting potential-free contacts (switches, buttons, relays)
Outputs : 1
Switching capacity : 1200 W / 1200 VA (220-240 V~) 600 W / 600 VA (110-219 V~)
Microphone : No
Loudspeaker : No
Sound encoder : Yes
Door opening button : Yes
Bell buttons : Yes
Proximity sensor : Yes, maximum range 1 meter
Room temperature sensor : Yes
Brightness sensor : Yes
Door opening function : Yes
Integrated Logic module : Yes
Configuration backup : Yes
Comfort - timer functions : Yes

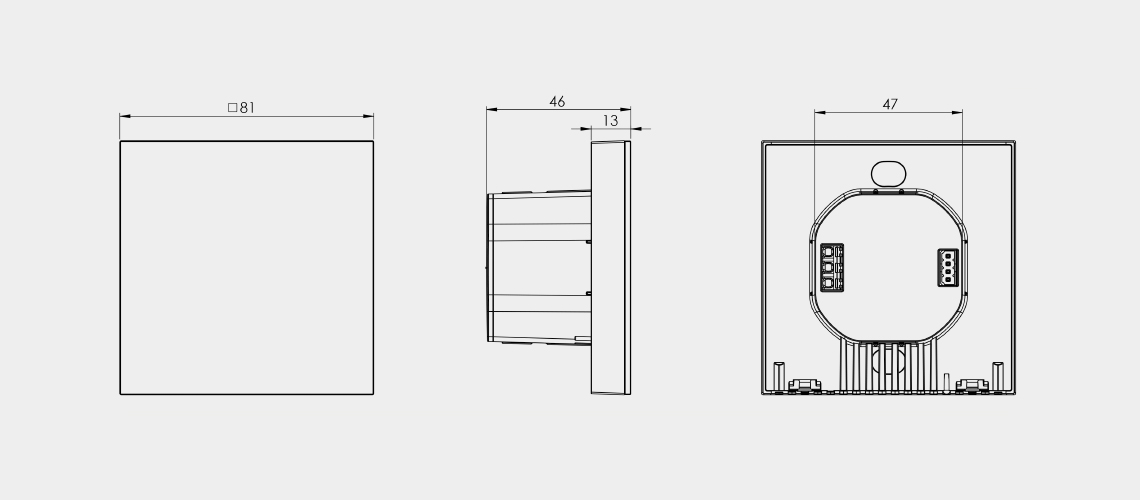

Dimensions and Weight

Dimensions (L x B x H) : 81 x 81 x 12 mm
Overall Height : 45 mmm
Weight : 100 g

Packaging

Packaging dimensions (L x B x H) 1 unit : 140 x 130 x 60 mm
Weight including packaging 1 unit : 200 g
