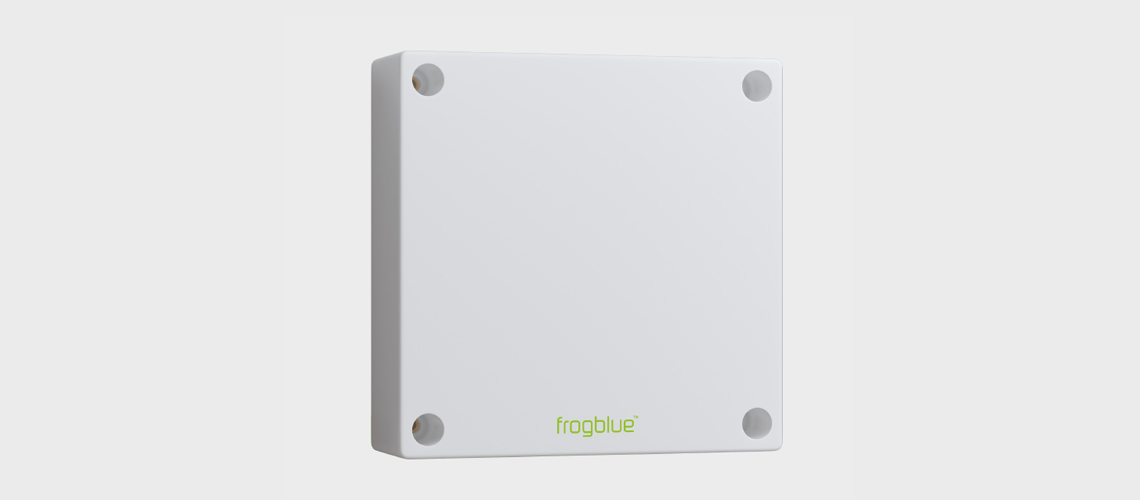

frogBoxRelay5-2

Multifunctional 5-channel actuator (6 A / 230V~) for switching lights and other loads

With two inputs for connecting push-buttons/switches, temperature and brightness sensor, comfort and time functions.

Power

Mains voltage : AC 110–240 V~
Mains frequency : 50 / 60 Hz
Stand-by Consumption : Less than 200 mW (without illumination)

Network

WLAN : No
Bluetooth® : Bluetooth® 4.2 Low Energy
Frequency range: 2400-2483,5 MHz max. 5.0 dBm
Typical radio open field range : 30 metres

Operation and Storage

Ambient temperature : -25°C to +60°C
Storage temperature : -25°C to +70°C
Air humidity (during operation) : (Non-condensing)
IP protection class : IP56

Power connection

Contact type : μ, N/O contact
Connection variants : Push-buttons, switches, heating valves, electric radiators
Connection type : Screw terminal (single wire)
Core cross section : 1 - 1,5 mm2 (rigid, flexible with ferrule)
Stripping length : 7 mm
Quantity cable feed : 2 (max. NYM-J 5 x 1,5mm2 )

Functions

Inputs : 2 (AC 110-240V ~)
Outputs : 5 potential-free (in 3 galvanically isolated circuits)
Outputs dimmable : No
Minimum load : -
Maximum power LV : max. 6 A / 30 V DC per circuit
Maximum power HV : max. 6 A / 110-240 V AC per circuit
Certifications : Bluetooth®
Integrated Logic module : Yes
Configuration backup : Yes
Comfort and timer functions : Yes
Power measurement : No
Temperature sensor : Yes

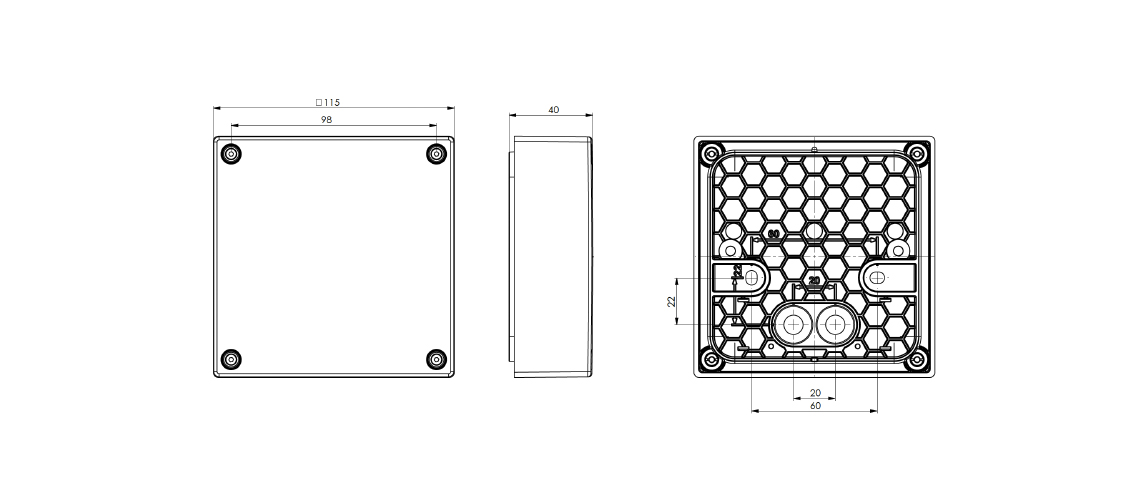

Dimensions and Weight

Dimensions (L x B x H) : 115 x 115 x 40 mm (without gasket)
Dimensions (L x B x H) : 115 x 115 x 44 mm (with gasket)
Weight : 315 g

Packaging

Packaging dimensions (L x B x H) 1 unit : 130 x 140 x 75 mm
Weight including packaging 1 unit : 432 g
