frogConnect1-1
frogConnect1-1
Discharge leakage current / residual voltage

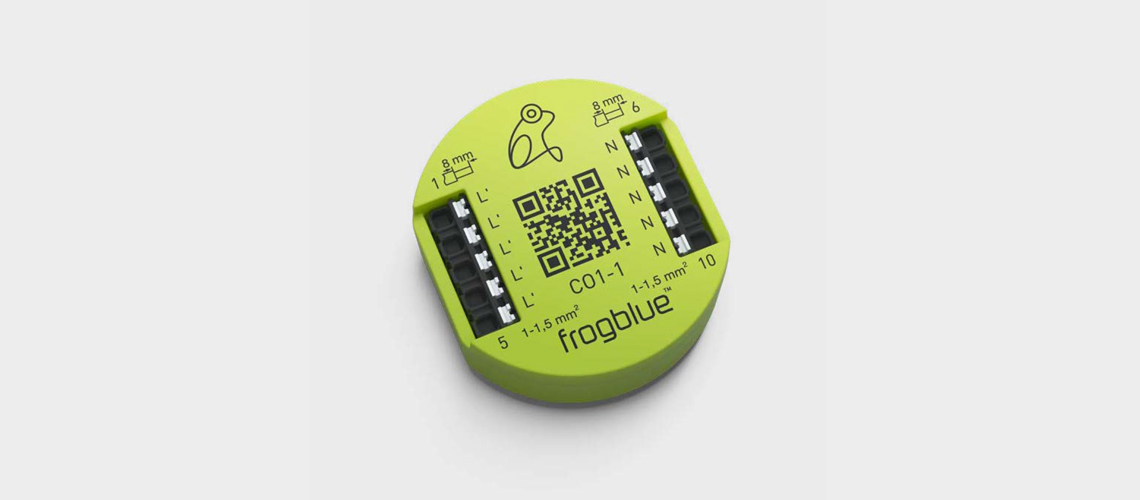

The frogConnect1-1 is used to discharge leakage current/residual voltage and thereby reduces the continued glow of certain LED lamps when switched off. This frog was developed for use with frogblue dimmers.
Power
Network
Operation and Storage
Power connection
Functions
Dimensions and Weight
Packaging
- Mains voltage : AC 110–240 V~
- Mains frequency : 50 / 60 Hz
- WLAN : No
- Bluetooth® : No
- Ambient temperature : -25°C to +55°C
- Storage temperature : -25°C to +70°C
- Air humidity (during operation) : (Non-condensing)
- Connection type : Spring-type terminal (single wire)
- Wire cross section : 1–1.5 mm² (rigid conductor recommended)
- Stripping length : 8 mm
- Inputs : 0
- Outputs : 0
- Protection category : Conforms to IP20
- Maximum rated supply current : max. 6 A
- Capacity : 0.15 μF

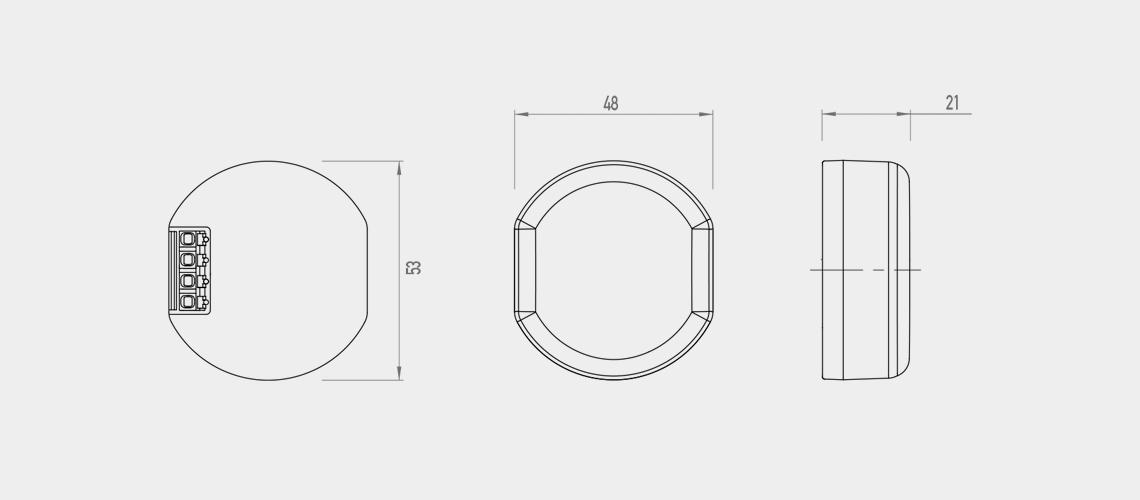

- Dimensions (L x W x H) : 53 x 48 x 21 mm
- Weight : 30 g
- Packaging dimensions (L x W x H) 1 unit : 75 x 30 x 75 mm
- Weight including packaging 1 unit : 50 g
