frogBoxOutdoor
frogBoxOutdoor
Weatherproof housing (IP56) for utilising the frogs directly outdoors.
Power
Operation and Storage
Power connection
Functions
Dimensions and Weight
Packaging
- Electricity supply : Depending on the frog used
- Ambient temperature : +55°C
- Storage temperature : -25°C to +70°C
- Air humidity (during operation) : (Non-condensing)
- IP protection class : IP56
- Quantity cable feed : 2 (max. NYM-J 5 x 1,5mm2 )
- Functions and power : Depending on the frog used.

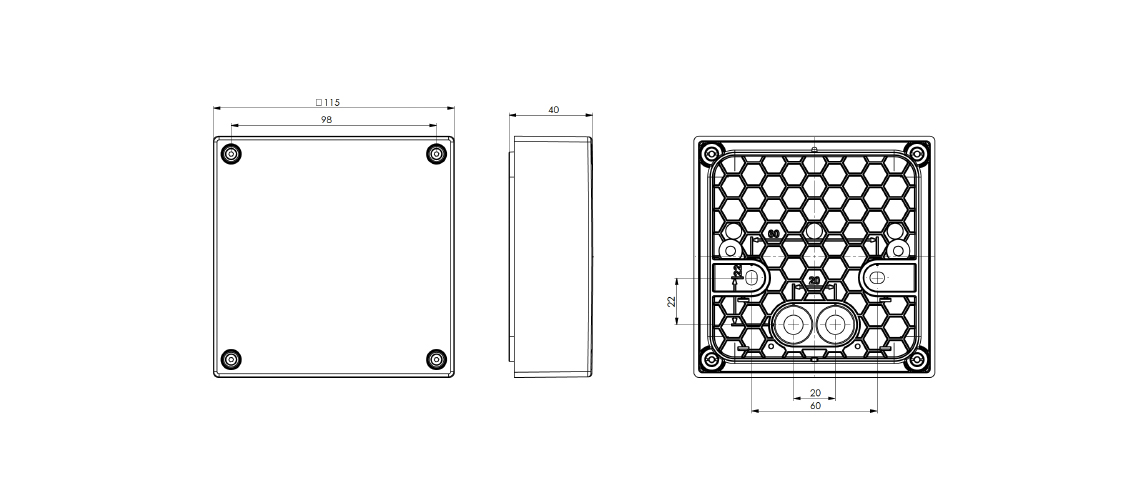

- Dimensions (L x B x H) : 115 x 115 x 40 mm (without gasket)
- Dimensions (L x B x H) : 115 x 115 x 44 mm (with gasket)
- Weight : 315 g
- Packaging dimensions (L x B x H) 1 unit : 130 x 140 x 75 mm
- Weight including packaging 1 unit : 350 g
