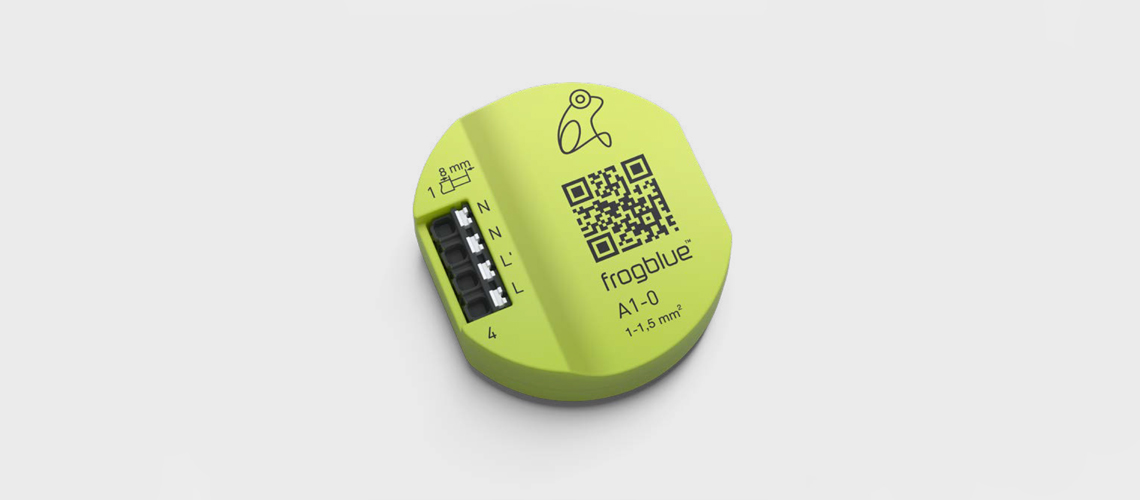

Multifunctional 1-channel actuator to activate/deactivate lights or other appliances (110-240 V~). Featuring integrated logic module with comfort and timer functions, power measurement and short circuit detection (1x 400 W @ 230 V~).

The small green control modules, called frogs, are the heart of every frogblue system and form the basis of the Bluetooth®-based smart building solution from frogblue. Frogs can switch, dim, measure, open doors or react to buttons, switches and window contacts.

Connected to the mains or battery-powered, they are linked together with “virtual cables” via the frogblue Bluetooth® mesh network. They forward messages and thus extend the range. Data transfer between the frogs is always encrypted (128 bit), and this in addition to Bluetooth®. frogs are smart, packed with innovative functions, are very easy to configure and do not require a central unit or control cabinet. With a power consumption of just 0.2 watts, they are also extraordinarily energy-conscious.

Installed in a deep flush-mounted back box (recommended socket depth: 63 mm) behind any conventional switch/button, junction box, weatherproof outdoor socket or lamp outlet, this multifunctional 1-channel actuator can be used to control the lights or other appliances.

For example, with this frog and another frog as an input module, e.g. the frogIn3-AC, outside lighting can be flexibly switched from indoors via 3 inputs (buttons or switches) without additional infrastructure. Supplied with power and connected to the corresponding lamp, a lighting circuit of up to 400 W can be controlled via the 1 output of the frogAct1-0.

The frogs can be controlled with the frogblue HomeApp via smartphone or tablet (iOS and Android), frogDisplay, frogKey or simply via the conventional switch/button connected to a frog. We always recommend buttons, as the full range of functions can be used with individual and different touch patterns, such as double or triple clicks, etc.
