frogBoxGPS0-2
frogBoxGPS0-2

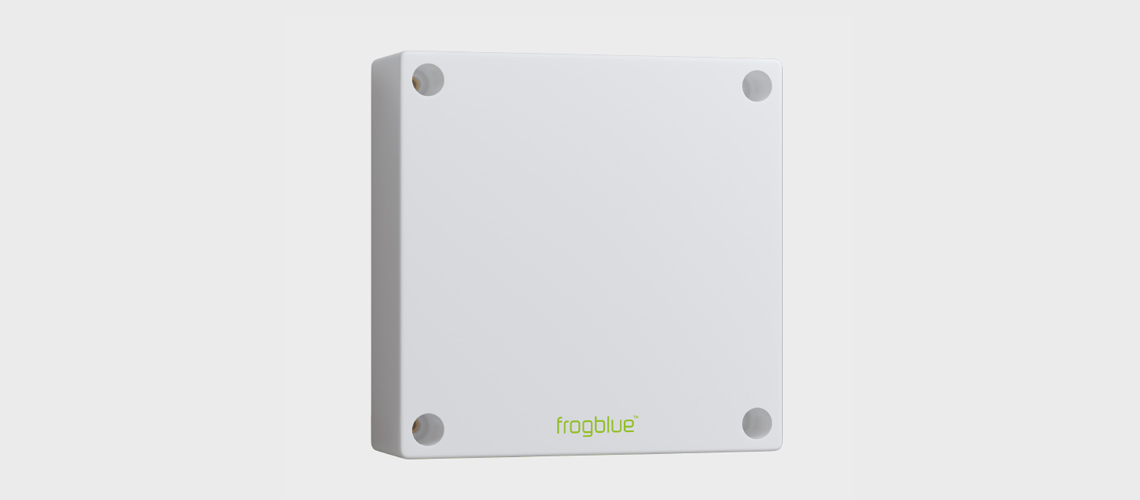

Outdoor control module with integrated GPS receiver for receiving the current date/time and position.
The weatherproof frogBoxGPS receives the current time from GPS satellites. It also measures the outdoor temperature and external brightness level. This allows the heating to be regulated according to the weather conditions and the lights to be switched on at dusk. An external wind sensor and a motion detector can be integrated via the 2 switching inputs.
Product characteristics:
* GPS receiver
* 2 RGBW LEDs in front / 2 RGB LEDs in rear
* Piezo-Buzzer (100dB)
* 2 inputs (110-240 V-)
* Bluetooth® interface
* Brightness sensor and temperature sensor
* Time buffering
* Mains supply via power cable, no additional cabling required between frogblue modules
- Mains voltage : AC 110–240 V~
- Mains frequency : 50 / 60 Hz
- Stand-by Consumption : Less than 300 mW
- WLAN : No
- Bluetooth® : Bluetooth® 4.2 Low Energy
- Frequency range: 2400-2483,5 MHz max. 0,6 dBm
- Typical radio open field range : 30 metres
- Ambient temperature : -25°C to +65°C
- Storage temperature : -25°C to +70°C
- Air humidity (during operation) : (Non-condensing)
- IP protection class : IP56
- Connection variants : 230V; Switches, buttons, etc.
- Connection type : Screw terminal (single wire)
- Core cross section : 1 - 1,5 mm2 (rigid, flexible with ferrule)
- Stripping length : 7 mm
- Quantity cable feed : 2 (max. NYM-J 5 x 1,5mm2 )
- Inputs : 2 (AC 110-240V ~)
- Outputs : -
- Piezo-Buzzer : Yes
- Certifications : Bluetooth®
- Integrated Logic module : Yes
- Configuration backup : Yes
- Comfort and timer functions : Yes
- Brightness sensor : Yes
- Temperature sensor : Yes
- GPS receiver : GPS, Galileo, GLONASS

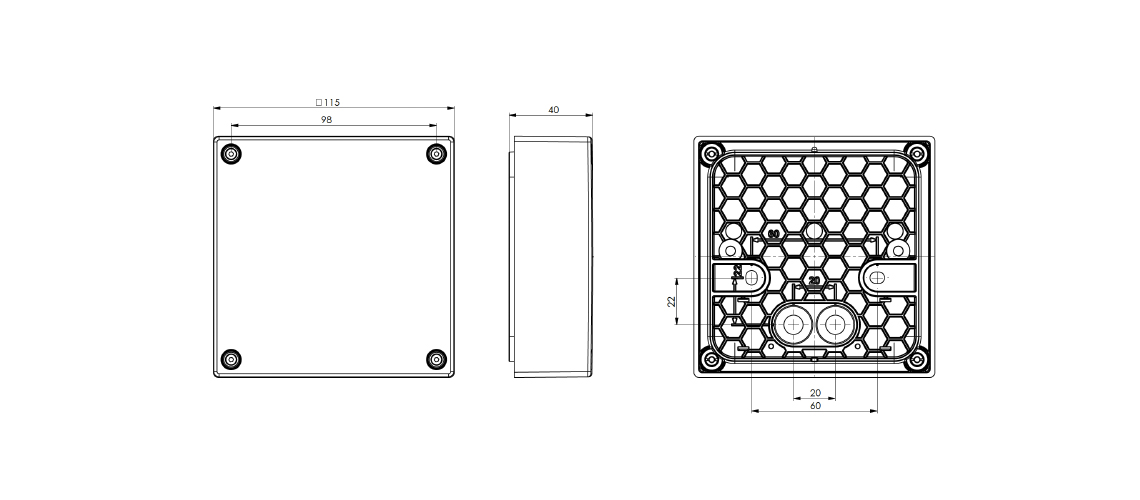

- Dimensions (L x B x H) : 115 x 115 x 40 mm (without gasket)
- Dimensions (L x B x H) : 115 x 115 x 44 mm (with gasket)
- Weight : 315 g
- Packaging dimensions (L x B x H) 1 unit : 130 x 140 x 75 mm
- Weight including packaging 1 unit : 432 g
