Multifunctional switch actuator to control 12V electronic door openers or motorized locks

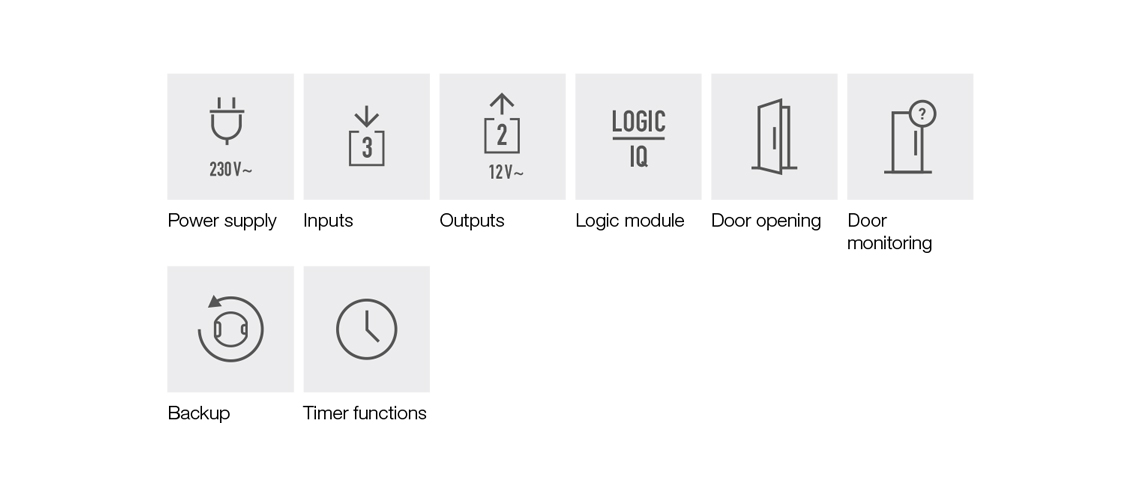

Multifunctional switch actuator to control 12V electronic door openers or motorized locks featuring 3 contact inputs for determining door or buttons/switches status in 2 galvanic circuits. With integrated logic module, featuring integrated logic module with comfort and timer functions.
The small green control modules, called frogs, are the heart of every frogblue system and form the basis of the Bluetooth®-based smart building solution from frogblue. Frogs can switch, dim, measure, open doors or react to buttons, switches and window contacts.
Connected to the mains or battery-powered, they are linked together with “virtual cables” via the frogblue Bluetooth® mesh network. They forward messages and thus extend the range. Data transfer between the frogs is always encrypted (128 bit), and this in addition to Bluetooth®. frogs are smart, packed with innovative functions, are very easy to configure and do not require a central unit or control cabinet. With a power consumption of just 0.2 watts, they are also extraordinarily energy-conscious.
Installed in a deep flush-mounted back box (recommended socket depth: 63 mm) behind any conventional switch/button, junction box, weatherproof outdoor socket or lamp outlet, this multifunctional switch actuator can be used to control electric door-openers with a 12 V supply and motorised locks.
In 2 galvanically isolated circuits, 3 contact inputs can detect the door status (door open, door closed, door locked) or receive signals from switches/buttons. For example, from a desired time (7 pm), the hallway light can always be switched on when the front door is opened. The frogEntry2-3 sends the information that the front door is open via Bluetooth®, for example, to frogDim1-3, which is connected to the lighting circuit in the hallway. It is freely configurable whether the lights should switch on with 100% brightness or dimmed to a certain percentage value.
The frogs can be controlled with the frogblue HomeApp via smartphone or tablet (iOS and Android), frogDisplay, frogKey or simply via the conventional switch/button connected to a frog. We always recommend buttons, as the full range of functions can be used with individual and different touch patterns, such as double or triple clicks, etc.
- Mains voltage : AC 110–240 V~
- Mains frequency : 50 / 60 Hz
- Stand-by Consumption : Less than 150 mW
- WLAN : No
- Bluetooth® : Bluetooth® 4.2 Low Energy
- Frequency range: 2400-2483,5 MHz max. 3,4 dBm
- Typical radio open field range : 30 metres
- Ambient temperature : -25°C to +45°C
- Storage temperature : -25°C to +70°C
- Air humidity (during operation) : (Non-condensing)
- Connection variants : Latch contact, door contact, bell and motor lock or electric door opener
- Connection type : Spring-type terminal (single wire)
- Wire cross section : 1–1.5 mm2 /0.2-0.5 mm2 (rigid conductor recommended)
- Maximum Cable length of the inputs (0.5 mm2) : 100 m
- Stripping length : 8mm (1-1.5mm2) / 6mm (0.2-0.5mm2)
- Inputs : 3; in 2 galvanically isolated circuits, for connecting potential-free contacts (switches, buttons, relays). Self supply (2 V / max.1mA) or low voltage contacts max. 30 V AC (50 V DC)
- Maximum Cable length for inputs : 100 m
- Outputs : 2; P: 12V / 300mA O: 12 V/30 mA (DC / AC) continuous load
- Output modes : Motorised lock (Mediator), electrical door opener, contactor/relay
- Protection category : Conforms to IP20
- Integrated Logic module : Yes
- Comfort and timer functions : Yes
- Integrated configuration backup : Yes
- Short circuit detection and notification : Output P: Yes; Output O: No (short-circuit proof)
- Dimensions (L x B x H) : 53 x 48 x 21 mm
- Weight : 38 g
- Packaging dimensions (L x W x H) 1 unit : 75 x 30 x 75 mm
- Weight including packaging 1 unit : 55 g
