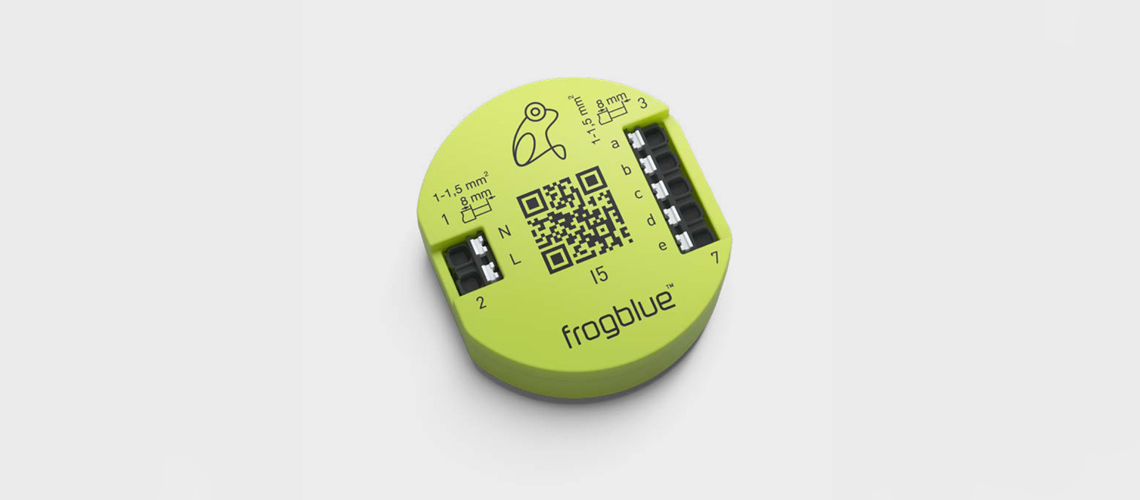

Multifunctional 5-channel input to query buttons/switches/other sensors (110-240 V~) and for controlling all components within the frogblue Bluetooth® LE network. Featuring integrated logic module with comfort and timer functions.

The small green control modules, called frogs, are the heart of every frogblue system and form the basis of the Bluetooth®-based smart building solution from frogblue. Frogs can switch, dim, measure, open doors or react to buttons, switches and window contacts.

Connected to the mains or battery-powered, they are linked together with “virtual cables” via the frogblue Bluetooth® mesh network. They forward messages and thus extend the range. Data transfer between the frogs is always encrypted (128 bit), and this in addition to Bluetooth®. frogs are smart, packed with innovative functions, are very easy to configure and do not require a central unit or control cabinet. With a power consumption of just 0.2 watts, they are also extraordinarily energy-conscious.

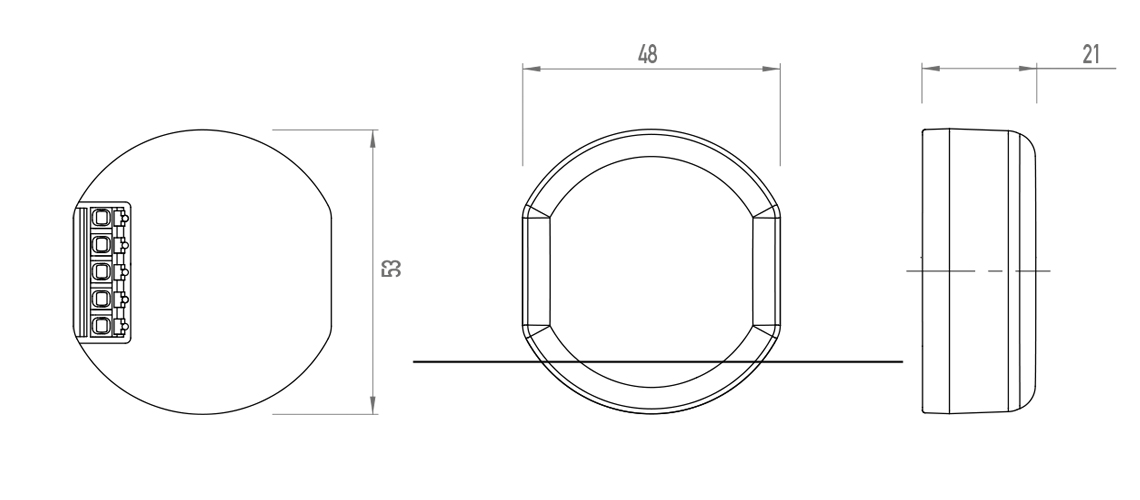

Installed in a deep flush-mounted back box (recommended socket depth: 63 mm) behind any conventional switch/button, junction box, weatherproof outdoor socket or lamp outlet, up to five switches or buttons can be connected to this multifunctional 5-channel input.

For example, at one point in the room, three switches/buttons can control the lighting circuits with the frogIn5-AC and the other existing inputs can control the shade via switches/buttons.

The frogs can be controlled with the frogblue HomeApp via smartphone or tablet (iOS and Android), frogDisplay, frogKey or simply via the conventional switch/button connected to a frog. We always recommend buttons, as the full range of functions can be used with individual and different touch patterns, such as double or triple clicks, etc.
